Starter Relay Test : How To Test A Starter Relay T X / The starter relay provides power to the starter when the key switch is turned to start. the starter relay acts like an electrical switch routing battery voltage to the starter when it receives a signal from the key switch.
Dapatkan link
Facebook
X
Pinterest
Email
Aplikasi Lainnya
Starter Relay Test : How To Test A Starter Relay T X / The starter relay provides power to the starter when the key switch is turned to start. the starter relay acts like an electrical switch routing battery voltage to the starter when it receives a signal from the key switch.. One is the 12 volt positive (top) that comes from the battery. A mechanical check to see if the starter pinion gear. Step 1 inspect the battery and starter terminals. Before replacing it by a new start relay, do the test to discover if it really is the part which has a problem. If you need any too.
The magnetic switch should engage and the multitester should read infinity. We also included information about the signs of a bad starter relay, how to test it, and how to replace or fix a bad one. Read on to learn more. In it, you will find all there is to know about the starter relay: If not ok, repair the open circuit to the fuse in the pdc as required.
Dodge Durango Starter Relay Diagnosis And Testing Starting Systems from www.dodurango.net To test a tractor starter solenoid, you will need a few tools. Keeping the probes plugged in, turn the relay right side up. Fortunately, all ford models have a remote relay near the battery, which makes it easy and convenient for troubleshooting. A mechanical check to see if the starter pinion gear. The starter relay is located exactly in the middle near the battery of a car. The starter system is simple, and the checks on it are straightforward. The starter relay provides power to the starter when the key switch is turned to start. the starter relay acts like an electrical switch routing battery voltage to the starter when it receives a signal from the key switch. Electrical checks are made with a circuit tester or test lamp or with a voltmeter.
Step 1 inspect the battery and starter terminals.

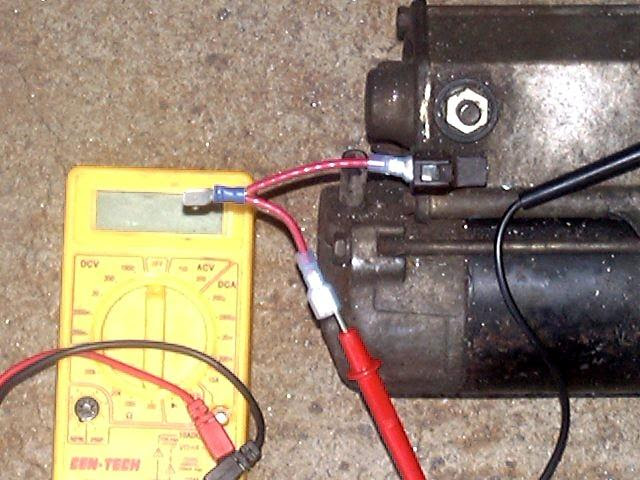

The simplest way of finding this is to use a multimeter with an ohmmeter setting and then measuring the resistance values by checking its terminals. The bulb will now illuminate when the relay is use, and will go out to signal a failure. We will start with the coil of the relay. They're small components but make the primary circuit that supplies power to the main starter system. Use a screwdriver to take off the screws holding the lower back panel on the back of your fridge in place and remove the panel. Here's how to test a refrigerator start relay. Starter relay test 1 this first test is designed just to see if the contactor is pushing up and completing the connection in the solenoid. Depending on the type of relay we will discuss how to test a relay using different methods. The starter relay provides power to the starter when the key switch is turned to start. the starter relay acts like an electrical switch routing battery voltage to the starter when it receives a signal from the key switch. (scroll down for explanatory video) Keeping the probes plugged in, turn the relay right side up. Disconnect the power to the refrigerator and open up the compartment. Testing the starter is simple and straight forward.

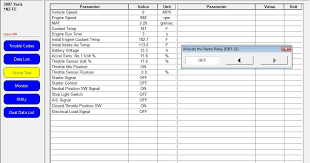

Connect a test light to the output terminal of the solenoid. Here's how to test a refrigerator start relay. Signs of a bad starter solenoid Testing a starter relay helps you to diagnose the problem that's making the car not to start. The main reason for testing a relay is to find, whether it is a good or defective one.

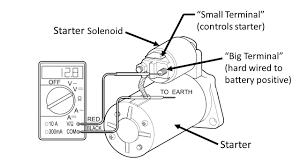

Starter Relay How To Test Yamaha R1 Forum Yzf R1 Forums from www.r1-forum.com Connect a test light to the output terminal of the solenoid. Today we're going over the steps on how to locate, remove and test the starter relay. A bad starter relay on your ford vehicle will prevent the necessary electrical power from reaching the starter motor; Electrical checks are made with a circuit tester or test lamp or with a voltmeter. The simplest way of finding this is to use a multimeter with an ohmmeter setting and then measuring the resistance values by checking its terminals. A relay coil's resistance always comes with the datasheet of the relay. There's a pretty simple shake test you can try to see if your relay is bad. The starter solenoid is sometimes called the starter relay, but many cars reserve that name for a separate relay which supplies power to the starter solenoid.
What it is, its location in a vehicle, how it works, and its function.
What it is, its location in a vehicle, how it works, and its function. There may be a plastic cover you need to remove to expose the relay. When the starter solenoid is activated, it connects the lower terminal to the upper one internally, engaging the starter motor. First of all, identify the relay you want to test with the help of the image given below. If you need any too. Most of these are general household items, though it is possible that you may need to take a trip to the hardware store. We will start with the coil of the relay. Keeping the probes plugged in, turn the relay right side up. When a faulty solenoid is suspected, the first step to test a starter solenoid is actually to test the battery. We also included information about the signs of a bad starter relay, how to test it, and how to replace or fix a bad one. In these cases, the ignition switch energizes the starter relay, which energizes the starter solenoid, which energizes the starter motor. It rarely breaks down due to not having many moving parts. The relay is an all or nothing device, meaning that it either.
The solenoid has two wires that normally connect to the starter button. One is the 12 volt positive (top) that comes from the battery. Keeping the probes plugged in, turn the relay right side up. Read on to learn more. This symptom is common when your battery is low on amps, but is also an indicator that your starter relay is not sending a full signal.

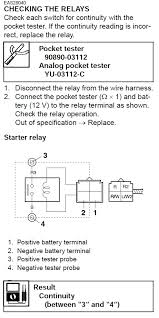

Motorcycle Starter Relay Test from kawasaki-nanbusaien.net Fortunately, all ford models have a remote relay near the battery, which makes it easy and convenient for troubleshooting. Using a voltage meter, the battery can be tested by placing the tester's electrodes onto the battery terminals. Put the multitester probes into the s and the m terminals. This video shows you how an automotive relay works and how you can test it using an digital multimeter. A physical test of the start relay can be the most effective way to determine whether it's working or not. The solenoid has two wires that normally connect to the starter button. What it is, its location in a vehicle, how it works, and its function. If ok, go to step 2.
A failed starter relay means the car may not start at all.
If they don't work properly, your car cannot start. The magnetic switch should engage and the multitester should read infinity. If ok, go to step 2. It should read 0 ohms. But, when it does, some bad starter relay symptoms will make you aware of the problem. How to tell if starter relay is bad?well, it is one of the major but often neglected components of the ignition system. This is the easiest way to do it out of the car and t. So let's start the tests. A physical test of the start relay can be the most effective way to determine whether it's working or not. Or keep the motor from starting at all. Fortunately, all ford models have a remote relay near the battery, which makes it easy and convenient for troubleshooting. The solenoid has two wires that normally connect to the starter button. It is good to test your solenoid because you might wind up replacing the wrong component and still be faced with a starting issue.
